Resilient-seated gate valve
A flanged gate valve range with handwheel and square-cap operating options. Keep opening direction and operating head explicit in the enquiry.
- Connection
- Flanged
- Seat type
- Resilient seated
- Recorded reference
- BS5163:2004
- Operating options
- Handwheel / square cap
| Configuration | Nominal size | Pressure | Length / OD | Add to inquiry |
|---|---|---|---|---|
| DN100 · PN16 · Handwheel · direction to confirm | DN100 | PN16 | To drawing | |
| DN100 · PN16 · Handwheel · CTO | DN100 | PN16 | To drawing | |
| DN100 · PN16 · Square cap · direction to confirm | DN100 | PN16 | To drawing | |
| DN100 · PN16 · Square cap · CTO | DN100 | PN16 | To drawing | |
| DN150 · PN16 · Square cap · direction to confirm | DN150 | PN16 | To drawing | |
| DN200 · PN16 · Square cap · direction to confirm | DN200 | PN16 | To drawing | |
| DN300 · PN16 · Square cap · direction to confirm | DN300 | PN16 | To drawing | |
| DN50 · PN16 · Square cap · direction to confirm | DN50 | PN16 | To drawing | |
| DN80 · PN16 · Square cap · direction to confirm | DN80 | PN16 | To drawing |

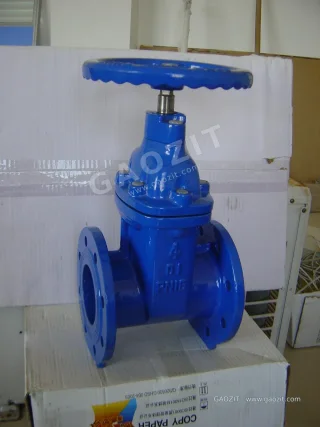

Series photograph. Confirm final drawings, materials, standards and test documentation before ordering. Listed configurations do not imply current stock.
